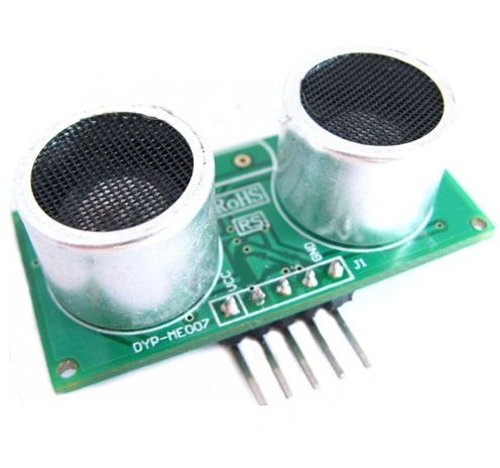

40Hz Ultrasonic Range Detection Sensor
40Hz Ultrasonic Range Detection Sensor
41365
More than 200

US$9.98 Loading ...

Share/Save/Bookmark


40Hz Ultrasonic Range Detection Sensor







1、Specification

Working Voltage : 5V(DC)

Working Current : max 15 ma

Working frequency : 40HZ

Output Signal : 0-5V (Output high when obstacle in range)

Sentry Angle : max 15 degree

Sentry Distance : 2cm - 500cm

High-accuracy : 0.3cm

Input trigger signal : 10us TTL impulse

Echo signal : output TTL PWL signal

Size : 45*20*15mm

Note : This module is not suitable to connect with electric power, if you need to connect this module with electronic power,then let the GND terminal of this module to be connected first, otherwise, it will affect the normal work of the module.

2、Interface:




Pin :

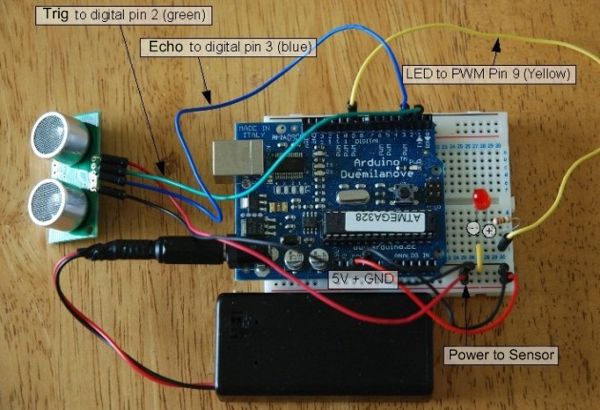

1:VCC ; 2:trig(T);3:echo(R);4:OUT ( Don't Connect ) ; 5:GND


3、Usage:

S
upply module with 5V, the output will be 5V while obstacle in range, or 0V if not.

The out pin of this module is used as a switching output when anti-theft module, and without the feet when ranging modules.

Note : the module should be inserted in the circuit before been power, which avoid producing high level of misoperation ;if not, then power again.

4、Module Working Principle :


(1) Adopt IO trigger through supplying at least 10us sequence of high level signal,

(2) The module automatically send eight 40khz square wave and automatically detect whether receive the returning pulse signal,

(3) If there is signals returning, through outputting high level and the time of high level continuing is the time of that from the ultrasonic transmitting to receiving.

Test distance = (high level time * sound velocity (340M/S) / 2,



5、Advantage :

Simple,easy to adopt in system;Beam angle to avoid disruptions;Endurable.






Click to download datasheet and manual
