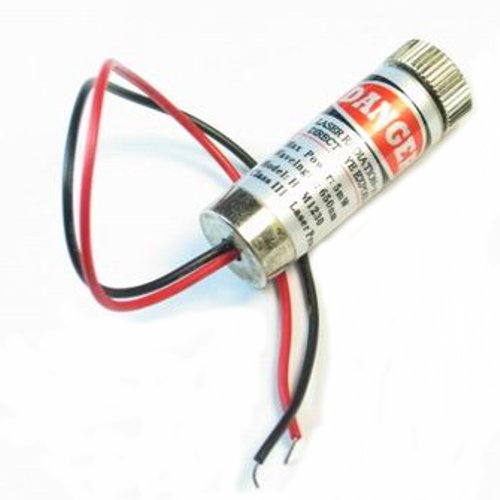

5mW Laser Module Emitter--Red Line




Output Power : Min 2.5mW, Typical 3.0mW, Max 5.0mW

Working current : Min 10mA, Typical 20mA, Max 25mA

Working voltage  : Min 2.3VDC, Typical 4.5VDC, Max 8.0VDC

Wavelength : 650nm

Working Temperature : Min -15C, Typical 25C, Max 35C

Storage Temperature : Min -20C, Max +25C

Focused Dot width : <2mm spoting 3 meters away.

Practical test for point head: reflection visible to random target >1000m

Cautions: Class III, avoid direct eye exposure to beams.
