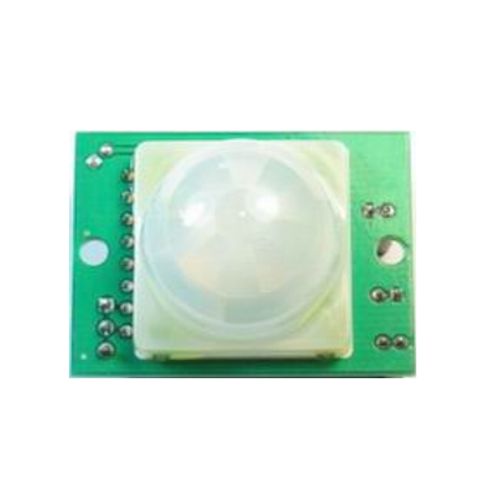

PIR Motion Sensor Module GH-718

Highly integrated module popularly used for entry detection, it complies with microcontroller or DC loads.

Usage :

1、Input Voltage : DC 4.5-20V

2、Static current : 50uA

3、Output signal : 0,3V (Output high when motion detected)

4、Sentry Angle : 110 degree

5、Sentry Distance : max 7 m

6、Shunt for setting overide trigger : H - Yes, L - No

7、Size : 38mm * 28mm  (32mm * 24mm)

Advantage :


1、Simple,easy to adopt any circuit system.

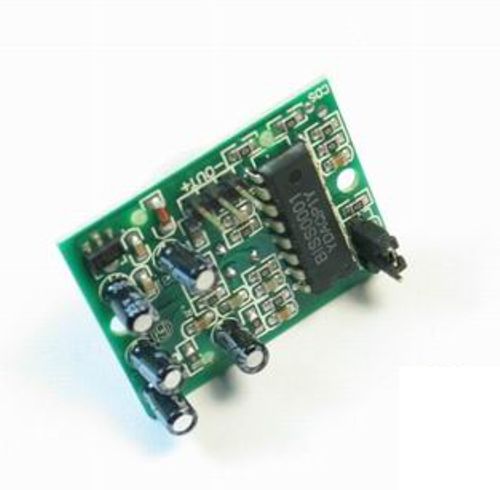

2、There are two adjustable potentiometer on the module, you can use them to change the trigger sensitivity and the duration of the trigger signal.
