Product | Camera Module | OV7725 Camera Module
OV7725 Camera Module
OV7725 Camera Module
More than 100
US$30.98 Loading ...

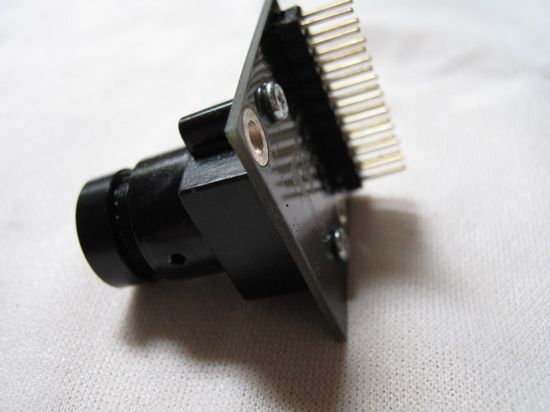

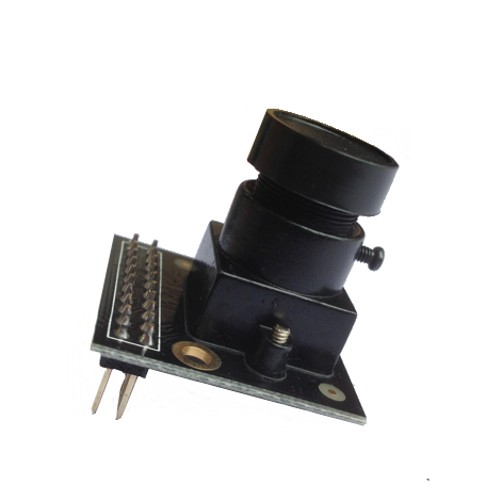

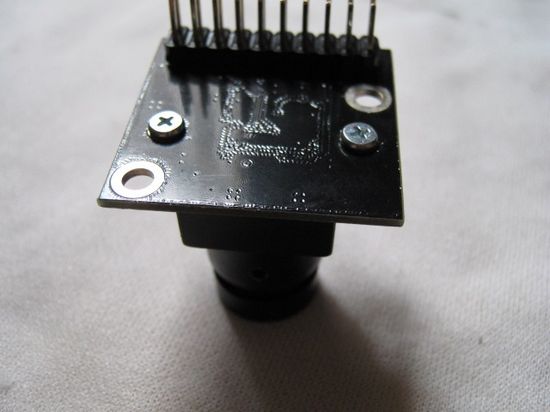

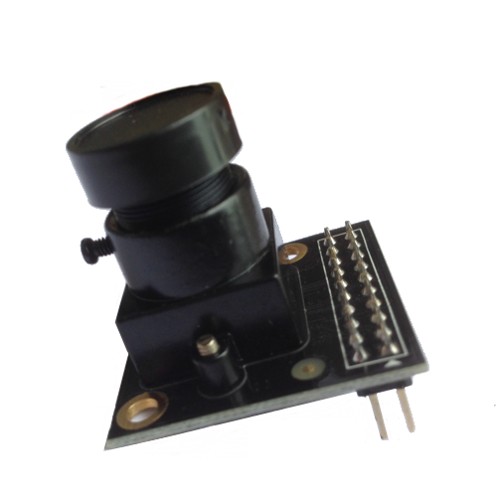

OV7725 Camera Module

Description :

This camera module is special for robot、electronic car、image processing and some other

electronic gadgets.

It's very useful for Electronic lovers.

You can make it be more powerful and useful beyond your imagination.


1、 Support RawRGB, RGB (GRB4:2:2, RGB565/555/444), YUV(4:2:2) and YCbCr(4:2:2) output format

2、Support from a variety of sizes CIF to 40x30 image output, support for high frame rate of 120FPS output (QVGA, more suitable for capturing fast-moving objects)

3、Optical size 1/4", pixel area 6 μm x 6 μm, sensitivity up to 3.0V/(Lux-sec)

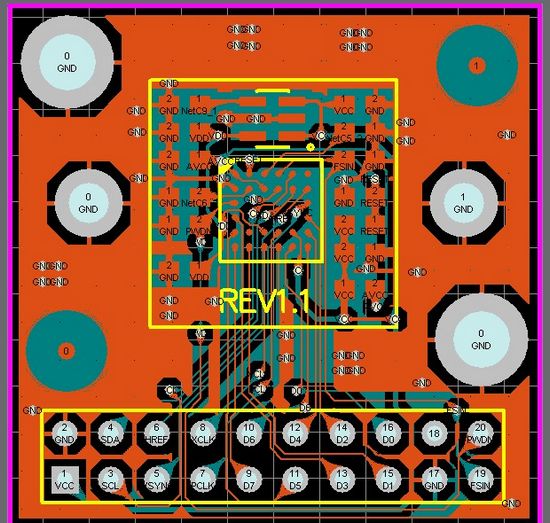

4、 2.54mm X 10 Pin Interface


Click here to download the document
