Wrobot L298N Motor Driver Shield V3.0
Wrobot L298N Motor Driver Shield V3.0
41891

US$13.98 Loading ...

Share/Save/Bookmark

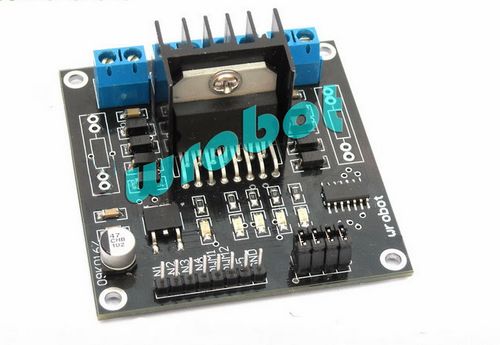

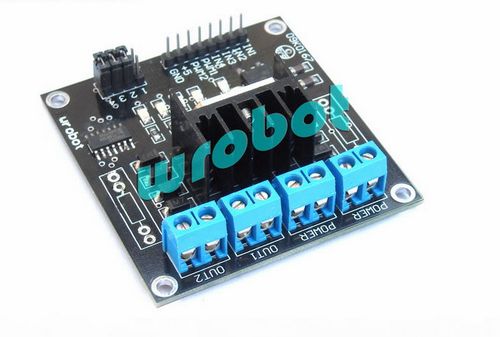

Wrobot L298N Motor Driver Shield V3.0

Description:


L298N dual H-bridge driver
Be able to drive a step motor or two DC motors

This is a 4.8-46V, 2A Dual Motor Controller which uses ST L298N dual full-bridge driver. Its performance has been improved greatly. It is a high voltage, high current dual full-bridge driver designed to accept standard TTL logic levels and drive inductive loads such as relays, solenoids, DC and stepping motors. Drive current up to 2A per motor output.


Specification :

1、Based on L298N of STMicroelectronics (ST), with strong driving ability

2、Equiped with freewheel diodes and heat sinks, has stable performance

3、External driving voltage is not necessary. It can drive with 5V voltage output with single power
     supply.

4、Reserved current-limiting resistor bits, you can choose PWM enable through limiting resistors
     jumper

5、Logic voltage changeable, generated by the drive plate or supplied from external

6、Dual voltage supply, adapt to motor with wider drive voltage apply to a variety of platforms including  Arduino / AVR / ARM



Electronic Parameters :

1、The logic part of the input voltage: 6 ~ 12V

2、Driven part of the input voltage Vs: 4.8 ~ 46V

3、The logical part of the work current Iss: 36mA

4、Maximum power dissipation: 25W (T = 75 degree Celsius)

5、Control signal input level:

6、High level: 2.3V = Vin = Vss

7、Low:-0.3V = Vin = 1.5V

8、Operating temperature: -25 degree Celsius ~ +130 degree Celsius

9、Drive Type: Dual high-power H-bridge driver

10、Module Size: 58mm*65mm



下载pdf文档资料.pdf
