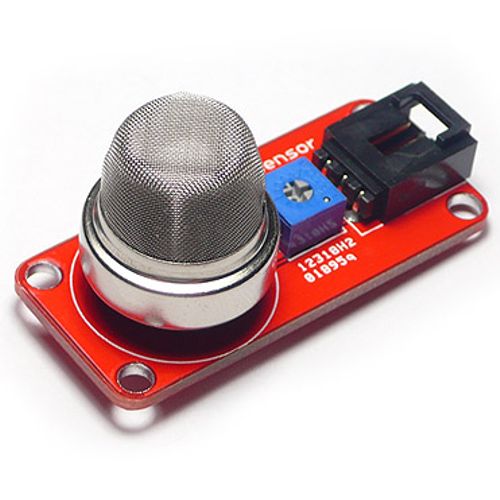

Arduino MQ5 Gas Sensor Brick

We can build electronics projects just as easy as piling bricks. Arduino and community have made the programming much easier than ever before. How about some elixir on hardware part? Maybe it is not yet convenient to make complex interfaces, but we can at least start from the most commonly used modules.

By using electronic bricks, you may connect Arduino compatible boards easily with various digital, analog and I2C/Uart interfaces. These the breadboard-less firm connection are prepared to extensive modules like poteniometers, sensors, relays, servos...even buttons, just plug and play.

Each terminal module has buckled port with VCC, GND and Output, which has corresponding port on the sensing board, with a plain 2.54mm dual-female cable you may start playing already. Buckled brick cables are like cement for bricks, make the connections easier, secure and more professional looking.

It is very interesting Electronic Brick Module

This module can be used with Arduino Special Sensor Shield V4.0.
You can do some simple design about it,it support“plug and play”。

Description :

Sensitive material of MQ-5 gas sensor is SnO2, which with lower conductivity in clean air. When the target combustible gas exist, The sensors conductivity is more higher along with the gas concentration rising. Please use simple electrocircuit, Convert change of conductivity to correspond output signal of gas concentration.

MQ-5 gas sensor has high sensitity to Methane, Propane and Butane, and could be used to detect both Methane and Propane. The sensor could be used to detect different combustible gas especially Methane, it is with low cost and suitable for different application.

Character :

1、High sensitivity to Combustible gas in wide range

2、High sensitivity to Methane, Butane and Propane

3、Fast response

4、Wide detection range

5、Stable performance、long life、low cost

6、Simple drive circuit

Technical Data :


Application :


1)  Domestic gas leakage detector

2)  Industrial Combustible gas detector

3)  Portable gas detector

They are used in gas leakage detecting   equipments in family and industry, are suitable for detecting of LPG, natural gas , town gas, avoid the noise of alcohol and cooking fumes and cigarette smoke.

Connecting Diagram :




This sensor module come with 3 Pin Dual-female Jumper Wire length 300mm as below :









Click to download the Datasheet
