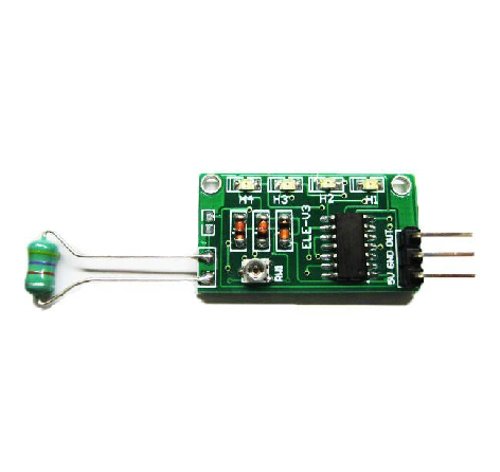

Electromagnetic Wave Detection Sensor is used to detect and display electromagnetic wave strength.

And this version is V3.0 module and include all of the function of both of the V2.0 and V1.0. The V3.0 module have two kind of output way : one kind is the voltage display electromagnetic wave strength and the other kind is the LED display electromagnetic wave strength.


1、The parameters of electromagnetic wave detection sensor module :

Input voltage : 5V

Range : 50Hz - 100MHz

The working current : 3mA

Output :

1：the voltage display electromagnetic wave strength

2：the LED display electromagnetic wave strength

Can adjust electromagnetic wave detection strength through potentiometer

Size : (length) 32mm * (width) 18mm * (high 8mm)

2、Connection mode:

5V : power input interface.

GND : power to interface.

Out : output the value of voltage.

3、Application of electromagnetic wave sensor :

To detect the whether electromagnetic wave or not and to confirm the strength of the electromagnetic wave.

Connecting Diagram :



4、Test Chart ：
