W5100 Ethernet Module
W5100 Ethernet Module
42080
More than 200

US$19.98 Loading ...

Share/Save/Bookmark

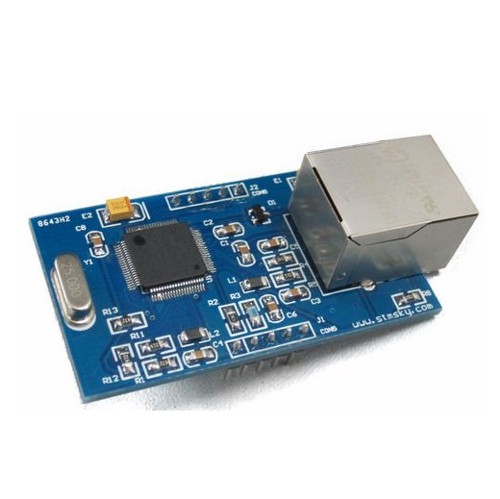

W5100 Ethernet Module





Description :


This W5100 module is completely compatibale with Arduino Ethernet Shield, it is very easy to use it.

W5100 is a multi-functional single-chip network interface module based on the internal integrated 10/100 Ethernet controller W5100, which is mainly used in highly integrated, high stability, high performance and low cost embedded systems.

Through W5100, you can access internet without using the operating system, and it is compatible with the IEEE802.3 10Base-T and 802.3u 100BASE-TX. W5100 integrates all the hardware and TCP / IP protocol stack, the Ethernet media access layer (MAC) and Physical Layer (PHY). Hardware TCP/IP protocol stack supports TCP, UDP, IPv4, ICMP, ARP, IGMP and PPPoE, and in many areas, these agreements have been verified through years. 16KB internal memory is also integrated for data transmission. When using W5100, you do not need to consider too much Ethernet control, you just need to do some simple Socket programming.

Features :

1、Support SPI BUS(SPI mode 0 or mode3)

2、Guarantee stable and reliable data communication by using W5100 one chip solution

3、Include hardwired,market-proven TCP/IP stack

4、Itegrated Ethernet MAC/PHY

5、Support TCP,UDP,IPv4,ICMP,ARP,IGMP and PPPoE

6、10BaseT/100BaseTX Ethernet PHY embedded

7、Support Auto Negotiation(full-duplex and half duplex)

8、Support Auto MDI/MDIX

9、Supports 4 independent sockets simultaneously

10、Internal 16Kbytes memory for TX/RX Buffer

11、0.18um CMOS technology

12、3.3V operation with 5V I/O signal rolerance

13、Multi-funciton LED outputs(TX,RX,Full/Half duplex,Collision,Link,Speed)

Interface :

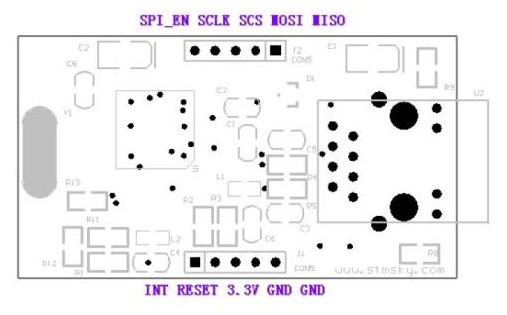

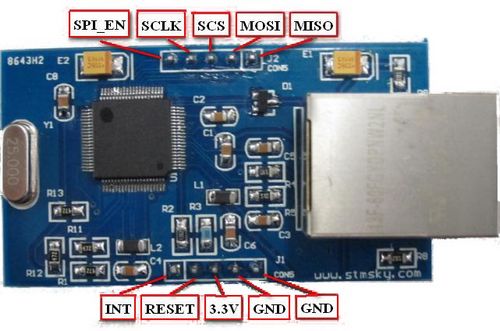

Pin Defination :




Applications :

1)  Home network devices.

2)  Serial-to-Ethernet

3)  GPIO-to-Ethernet

4)  Security systems

5)  Factory and Building Aoutomations

6)  Medical monitoring equipments

7)  Embedded servers

下载pdf文档资料.pdf
