Digital Light Sensor Module
Digital Light Sensor Module
42142
More than 300

US$10.98 Loading ...

Share/Save/Bookmark

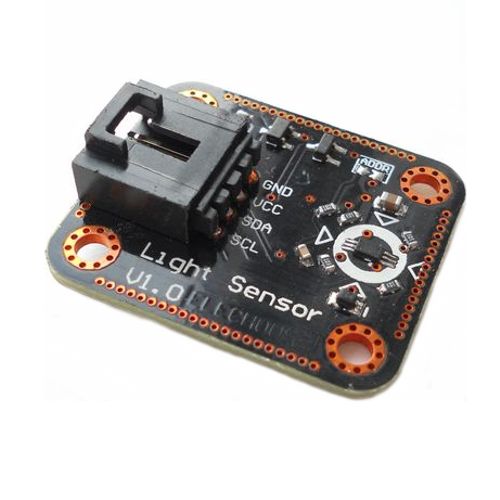

Arduino Digital Light Sensor Module

Description :

This is a BH1750FVI light intensity sensor module with built-in a 16 bit AD converter generating digital signal. The data from this module is light intensity in lx (lux meter).

Here are some lx examples :

1) Night: 0.001~0.02;
2) Moonlight night: 0.02~0.3;
3) Cloudy indoor: 5~50;
4) Cloudy outdoor: 50~500;
5) Sunny indoor: 100~1000;

Mainly Features As Follows :

1、Switchable Voltage: 4.5V~6V or 3.3V

2、I2C bus Interface with 2 alternative address (f/s Mode Support)

3、Spectral responsibility is approximately human eye response

4、Wide range and High resolution (1 ~ 65535 lx)

5、Light source dependency is little. (ex. Incandescent Lamp. Fluorescent Lamp. Halogen Lamp. White LED. Sun Light)

6、Adjustable measurement result for influence of optical window (It is possible to detect min. 0.11 lx, max. 100000 lx by using this function.)

7、The influence of infrared is very small.

8、Small measurement variation (+/- 20%)

Specification:

Operation on this module is pretty easy. We supply sample code.

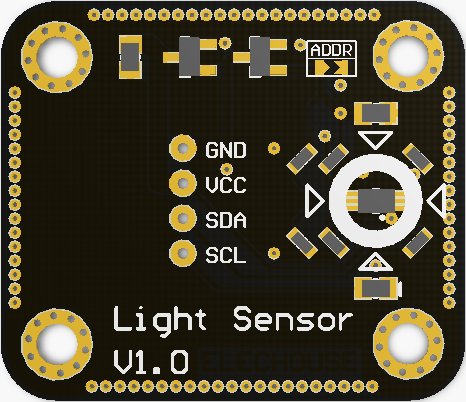

Address of this module can be changed. By default, the address is "0100011". You can connect the solder bridge in the ADDR box as shown below. Then the address becomes "1011100".




You can also do other configurations. For more information, you can refer to the datasheet.
Hardware Connection

Connect Arduino with this module :

Arduino | Module
5V < -- > VCC
GND < -- > GND
A4 < -- > SDA
A5 < -- > SCL

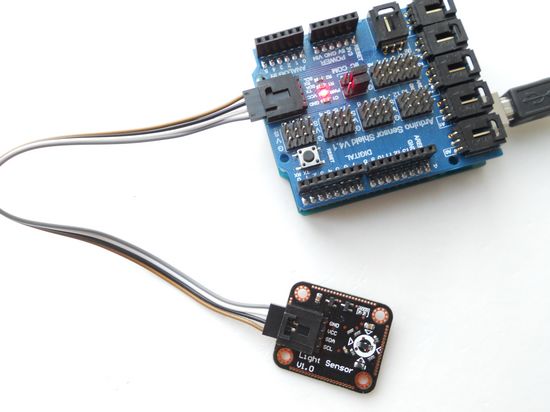

If you have Arduino Sensor Shield, connection becomes much easier :


Sample Code :

This code is for Arduino

#include <Wire.h> //IIC
#include <math.h>

int BH1750address = 0x23;
byte buff[2];

void setup()
{
Wire.begin();
Serial.begin(9600);
}

void loop()
{
int i;
uint16_t val=0;

BH1750_Init(BH1750address);
delay(200);
if(2==BH1750_Read(BH1750address))
{
val=((buff[0]<<8)|buff[1])/1.2;
Serial.print(val,DEC);
Serial.println("[lx]");
}
delay(150);
}

int BH1750_Read(int address) //
{
int i=0;
Wire.beginTransmission(address);
Wire.requestFrom(address, 2);
while(Wire.available()) //
{
buff[i] = Wire.receive(); // receive one byte
i++;
}
Wire.endTransmission();
return i;
}

void BH1750_Init(int address)
{
Wire.beginTransmission(address);
Wire.send(0x10);//1lx reolution 120ms
Wire.endTransmission();
}

Test Result :

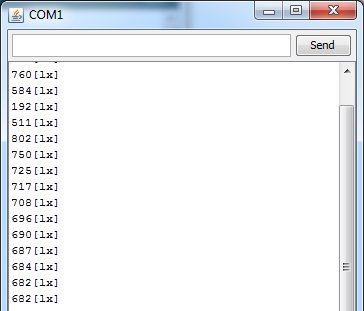

Upload the code to Arduino and then open the Serial Monitor :




Click to download the Zip Document



Zip Document List :

1):Manual

2):Schmatic and PCB size

3):BH1750FVI datasheet Datasheet

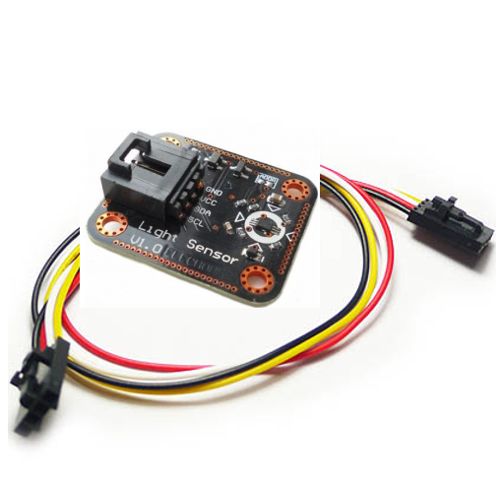

Product list :

1) : Arduino Digital Light Sensor Module  x1

2) : Arduino I2C/COM Cable x1
