Wrobot Digital 38KHz IR Receiver Sensor
Wrobot Digital 38KHz IR Receiver Sensor
42186

US$4.00 Loading ...

Share/Save/Bookmark

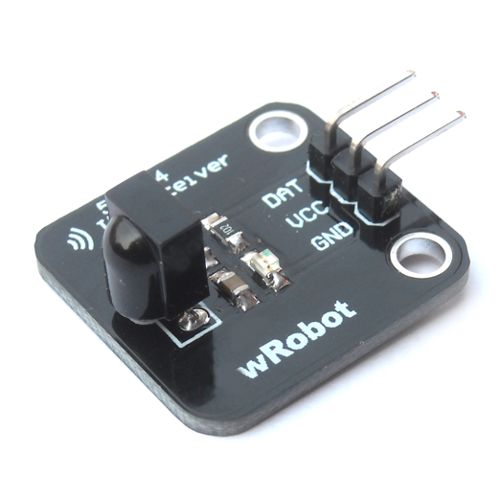

Wrobot Digital 38KHz IR Receiver Sensor




Description :

IR is widely used in remote control. With this IR receiver, the Arduino project is able to receive command from any IR remoter controller if you have the right decoder. Well, it will be also easy to make your own IR controller using IR transmitter.

38KHz IR Receiver Sensor pin definitions : (1) Output (2) Vcc (3) GND



Features :

1、Based on the 38KHz IR Receiver Sensor

2、Can be used for remoter control

3、Power Supply : 5V

4、Interface : Digital

5、Modulate Frequency : 38Khz

6、Pin Definitions : (1) Output (2) Vcc (3) GND

7、Can be compatible with Wrobot Digital 38KHz IR Transmitter Sensor

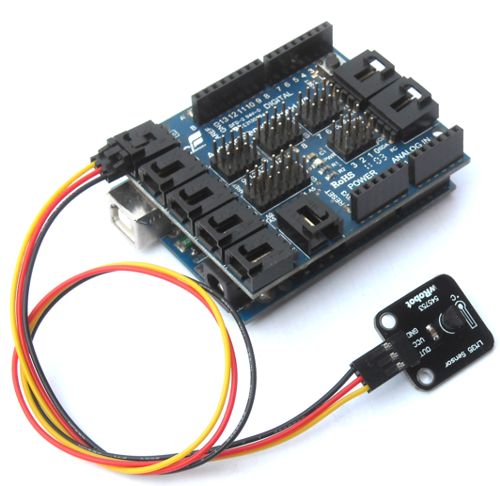

Connecting Diagram :






This sensor module come with 3 Pin Dual-female Jumper Wire length 300mm as below :





Click to download document zip file

Zip file including list : Sample colde、Test code、schematic diagram、Datasheet
