Product | Sensors | Other Sensor | Wrobot Crash Sensor

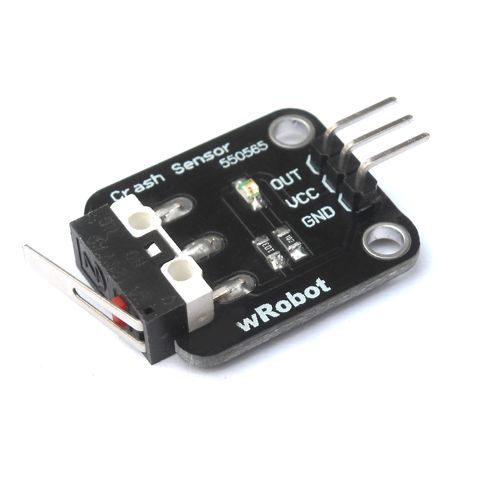

Wrobot Crash Sensor
Wrobot Crash Sensor
42199

US$4.00 Loading ...

Share/Save/Bookmark

Wrobot Crash Sensor




Description :

Wrobot Crash Sensor is arduino compatible and can be used for for robot collision detection, touch collision detection.

It is based on the high sensitivity crash sensor.

With the Arduino sensor expansion board, in combination, it can be very easy to achieve robot collision detection, touch collision detection.

When touch, output low level ; when release, maintain a high level

Wrobot Crash Sensor pin definitions : (1) Output (2) Vcc (3) GND

Features :


1、Based on the high sensitivity crash sensor

2、Can be used for robot collision detection, touch collision detection

3、Type : Digital

4、Sensitivity : High

5、Power Supply : 5V

6、Pin Definitions : (1) Output (2) Vcc (3) GND

7、When touch, output low level ; when release, maintain a high level

8、Apply to a variety of platforms including Arduino/51/AVR/ARM

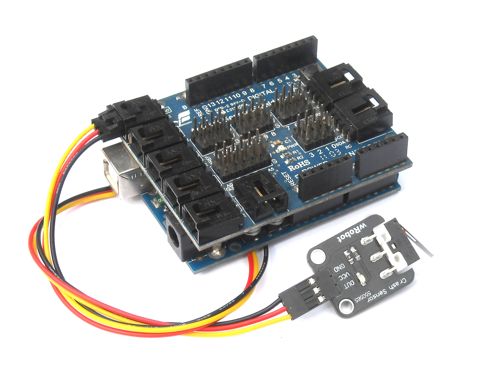

Connecting Diagram :








This sensor module come with 3 Pin Dual-female Jumper Wire length 300mm as below :





Click to download schematic diagram

下载pdf文档资料.pdf
