Wrobot 5V Power Supply Module

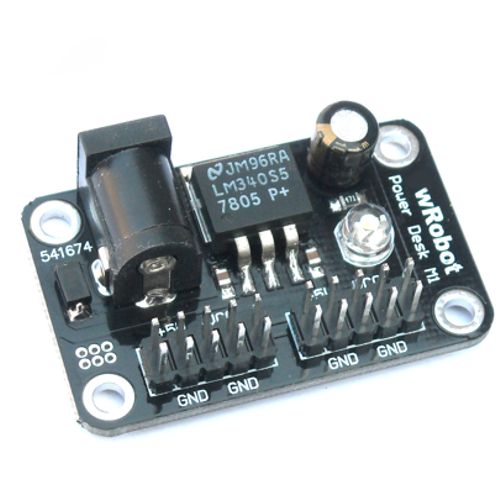

Wrobot 5V Power Supply Module is based on IC LM340T5/7805, can provide a 5V maximum output voltage, and can provide the output current at 1A, suitable for all kinds of electronic manufacture and experiment.

This module supply 2 groups of output in needle, each group provides 5 pcs 5 V voltage output.

Feature :

1、Output voltage: 5 V

2、2 groups of output in needle, each group provides 5 pcs 5 V voltage output

3、Input voltage: 6.5-18 V (DC)

4、Maximum output current: < 1000 ma

5、With the power indicator light, with a screw holes

6、On the back of PCB, there is large copper which is better for cooling

7、Good item for project with Arduino , 8051, AVR, PIC, DSP, ARM

Note: 7805 is linear regulator chip, the higher the input voltage, the greater the heat, the lower the efficiency














Click to download the schematic diagram



下载pdf文档资料.pdf
