3.2" and 5" TFT Shield for Arduino Due

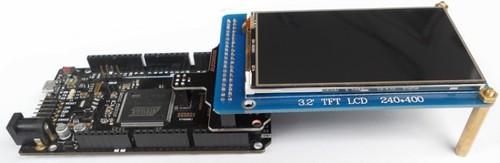

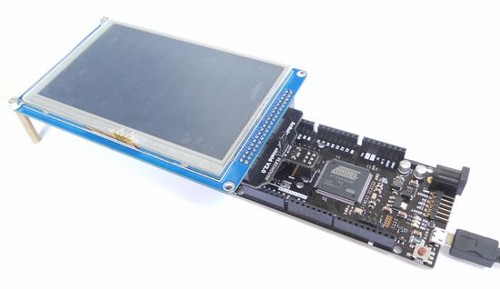

This shield is compatible with both 3.2" and 5" TFT screen for Arduino Due.

Arduino Due is much powerful than pervious Arduino boards. And it's interface is 3V3 TTL, which makes much easier for it to work with TFT LCD module.

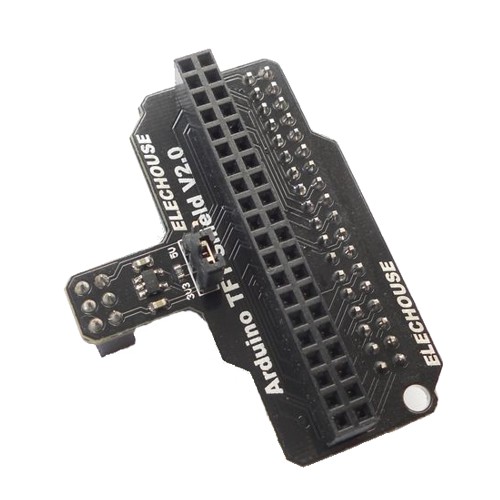

This shield is designed to connect Arduino Due and TFT Screen. It could supply 3.3V or 5V voltage to TFT screen, which means being compatible with both 3.2" TFT Screen module and 5.0" TFT Screen module. Note that our 5.0" TFT Screen module works with 3.3V power supply while our 3.2" TFT Screen module works with 5V power supply.

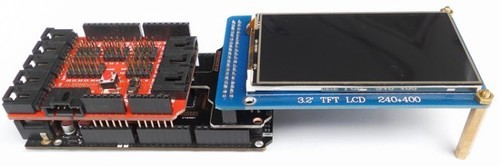

Unlike other TFT shields, our shield allows other modules to insert to Arduino Due. The following pictures shows that our Sensor Shield and TFT screen module could work with Arduino Due at the same time.



Please note: this shield is not compatible with Arduino Mega/Mega2560. Please DO NOT insert it into Arduino Mega/Mega2560. We are not responsible for any damage caused by mistake of operation.


Download

Pin Mapping.pdf

Arduino library for 3.2" TFT screen

Arduino library for 5.0" TFT screen
