MPU-6050 3 Axis Gyroscope And Accelerometer Module
MPU-6050 3 Axis Gyroscope And Accelerometer Module
42257

US$14.98 Loading ...

Share/Save/Bookmark

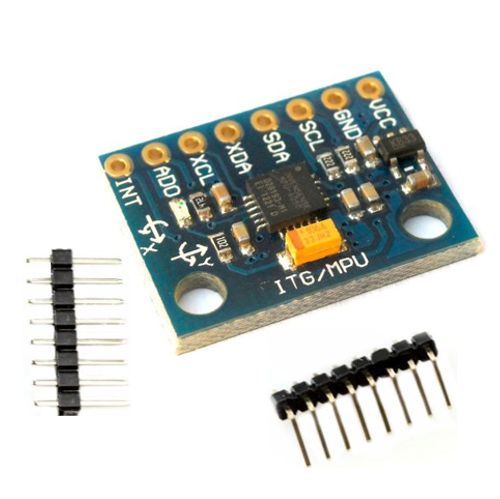

MPU-6050 3 Axis Gyroscope And Accelerometer Sensor Module


Description :

This board includes a MPU-6050 6-Axis Motion Processing Unit, a 2.5V voltage regulator, and the logic level converter circuit to makes it work under the power of 3V-5V. Based on its I2C communication protocol, you can use very few wires to connect it with a 3V-5V MCU directly.

The MPU-6050 sensor contains a MEMS accelerometer and a MEMS gyro in a single chip. It is very accurate, since it contains 16-bits analog to digital conversion hardware for each channel. Therefor it captures the x, y, and z channel at the same time.



Electronic Feature :


Name: MPU-6050 module (three-axis gyroscope + triaxial accelerometer)

1、Chip: MPU-6050

2、Power supply: 3V-5V power(internal low dropout regulator)

3、Gyroscope range: + 250 500 1000 2000 ° / s

4、Acceleration range: ± 2 ± 4 ± 8 ± 16 g

5、Communication Mode: standard IIC communication protocol

6、Chip built-in 16 bit AD converter, 16 bits data output

7、Pin pitch 2.54 mm

8、Size: 20.3mm x 15.6mm

9、Immersion Gold PCB, machine welding process to ensure quality






Application :

- Motion sensing game

- Augmented Reality

- Electronic Image Stabilization (EIS: Electronic Image Stabilization)

- Optical image stabilization (OIS: Optical Image Stabilization)

- Pedestrian Navigator

- Zero-touch gesture user interface

- The postures quick way



Example :


More details will be shown step by step in the test file.

Download the Arduino Library for MPU-6050 and extract it to your library folder in your Arduino installation. Mine is here: C: Program Files arduino-0021libraries.

Connect this module with Arduino :

Arduino GND -> MPU-6050 GND
Arduino 3.3V -> MPU-6050 VCC
Arduino A4 (SDA) -> MPU-6050 SDA
Arduino A5 (SCL) -> MPU-6050 SCL

Here we use Arduino Sensor Shield to make connection very easy.
