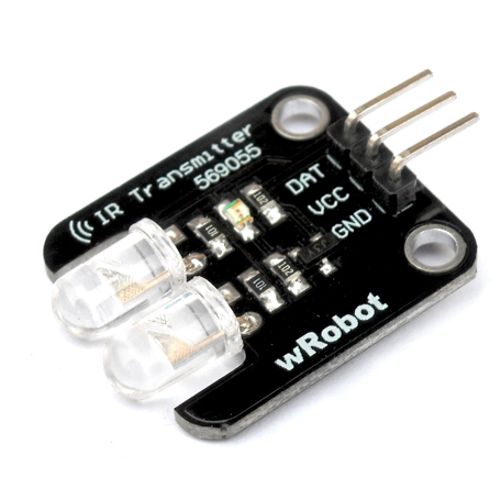

Wrobot Dual Digital 38KHz IR Transmitter Sensor

Description :

IR is widely used in remote control. With this IR transmitter, the Arduino project is able to transmit command to any IR remote Receiver if you have the right decoder. Well, it will be also easy to make your own IR controller using IR Receiver.

This item contain four IR transmitters in four different direction, so this item can be used in effective wide range for your project.

This item have transmit status indicator light that is helpful for adjustment.

38KHz IR Transmitter Sensor pin definitions : (1) Output (2) Vcc (3) GND

Features :


1、Based on the 38KHz IR Transmitter Sensor

2、Can be used for remote control

3、Power Supply : 5V

4、Interface : Digital

5、Modulate Frequency : 38Khz

6、Pin Definitions : (1) Output (2) Vcc (3) GND

7、Can be compatible with Wrobot Digital 38KHz IR Receiver Sensor

8、Contain four IR transmitters in four different direction, so this item can be used in effective wide range for your project.

9、This item have transmit status indicator light that is helpful for adjustment.

10、Apply to a variety of platforms including Arduino/51/AVR/ARM


Connecting Diagram :







This sensor module come with 3 Pin Dual-female Jumper Wire length 300mm as below :







Click to download document zip file

Zip file including list : Sample colde、Test code、schematic diagram、Datasheet
