Product | Sensors | Environment Sensor | Water Flow Sensor RG-6

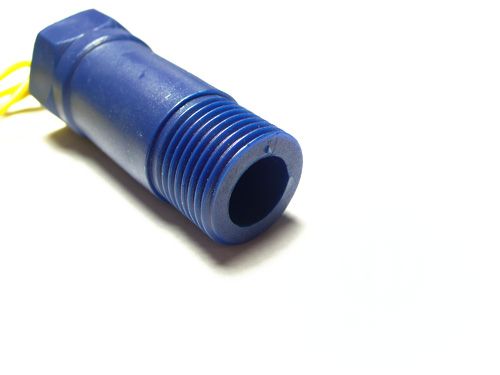

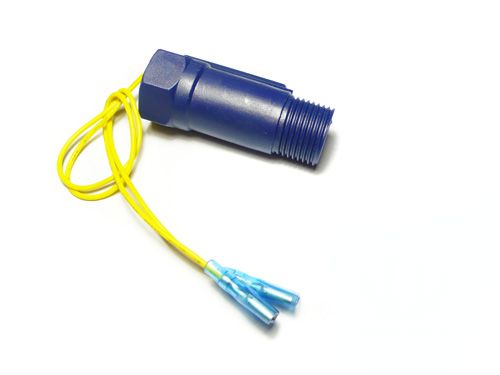

Water Flow Sensor RG-6
Water Flow Sensor RG-6
41778

US$9.58 Loading ...
add to wish list

Share/Save/Bookmark


Water Flow Switch RG-6





Num
Item
Parameter
UnitMark
1
Max switch current
0.5
A

2
Max load current
1.0
A

3
Max resistance
100
mΩ

4
Max load power
10
W

5
Max switch voltage
100
VDC

6
Min damage voltage
220
VDC

7
Min sensible flow
≥0.1
L∕min

8
Working flow range
1—30
L∕min

9
Min sensible pressure
≥0.1
Mpa

10
Min water pressure
0.1
Mpa

11
Max water pressure
1.2
Mpa

12
Working temperature
1—80
℃

13
Storage temperature
-20—100
℃

14
Life
108
time
5VDC  10mA
15
Response time
0.2
S

16
Release time
0.2
S
