We can build electronics projects just as easy as piling bricks. Arduino and community have made the programming much easier than ever before. How about some elixir on hardware part? Maybe it is not yet convenient to make complex interfaces, but we can at least start from the most commonly used modules.

By using electronic bricks, you may connect Arduino compatible boards easily with various digital, analog and I2C/Uart interfaces. These the breadboard-less firm connection are prepared to extensive modules like sensors, relays, servos...even buttons, just plug and play.

Each terminal module has buckled port with VCC, GND and Output, which has corresponding port on the sensing board, with a plain 2.54mm dual-female cable you may start playing already. Buckled brick cables are like cement for bricks, make the connections easier, secure and more professional looking.

It is very interesting Electronic Brick Module

This module can be used with Arduino Special Sensor Shield V4.0.

You can do some simple design about it，it support“plug and play".

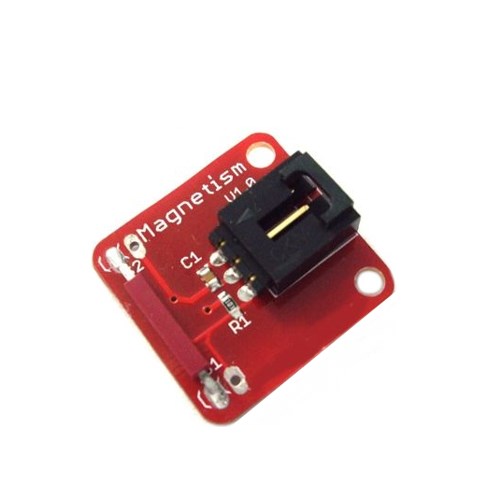

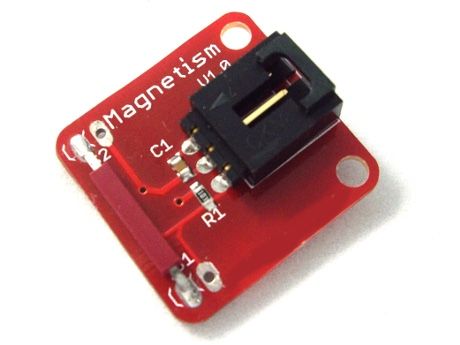

Arduino Magnetism Switch working with Magnet.

The switch turns on when this brick is close to a Magnet ; and the switch turns off when this brick is far away from a Magnet.

The magnetic sensor can be used on magnetic (magnet) detection, detection range up to about 3cm (detection range and the strength of the magnetic).









Click to download the schematic diagram and test code
