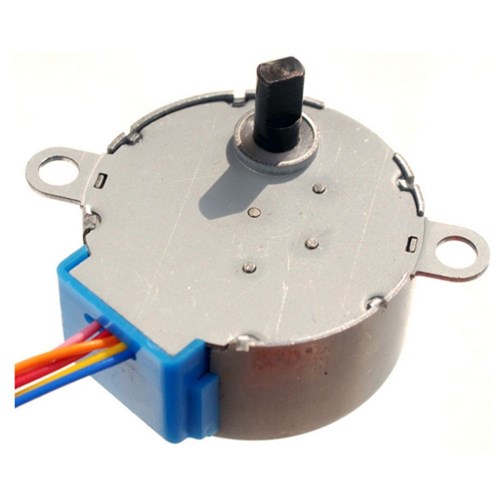

35BYJ46 Stepper Motor 24V

Description :

Mainly used in Air Conditioner Louver , Small Cooling/Heating Fan etc., Stable and all technic parameters are qualified for national electronic standard of SJ/T10689-95.

Electronic Parameters :

Rated voltage ： 24VDC

Number of Phase : 4

Moderating Ratio : 1/43.75

Step Angle : 7.5°/43.75

DC Resistance : 110~150Ω ±7% (25℃)

Operation Frequency : 100 (PPS)

Idle In-traction Frequency : ≥350 (PPS)

Idle Out-traction Frequency : ≥600 (PPS)

Pull-in Torque : ≥147 (mN.m)

Detent Torque : ≥78.4 (mN.m)

Insulated Resistance : ≥50MΩ(500V)

Dielectric Strength : 600V.AC/1mA/1s

Insulation Class : A

Rise in Temperature : ≤45K

Noise : ≤40dB

Model : 35BYJ-46




Wiring Diagram :
