Arduino Flame Sensor

We can build electronics projects just as easy as piling bricks. Arduino and community have made the programming much easier than ever before. How about some elixir on hardware part? Maybe it is not yet convenient to make complex interfaces, but we can at least start from the most commonly used modules.

By using electronic bricks, you may connect Arduino compatible boards easily with various digital, analog and I2C/Uart interfaces. These the breadboard-less firm connection are prepared to extensive modules like poteniometers, sensors, relays, servos...even buttons, just plug and play.

Each terminal module has buckled port with VCC, GND and Output, which has corresponding port on the sensing board, with a plain 2.54mm dual-female cable you may start playing already. Buckled brick cables are like cement for bricks, make the connections easier, secure and more professional looking.

It is very interesting Electronic Brick Module

This module can be used with Arduino Special Sensor Shield V4.0.
You can do some simple design about it，it support“plug and play”。

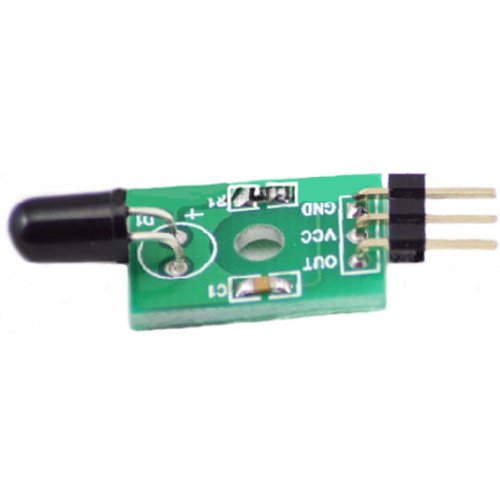

Arduino Flame Sensor can be used to detect fire source or some other heat source with the wavelengths from 760nm to 1100 nm, and the detection angle can reach 60 °.

When infrared wavelengths near 940nm , it will reach the maximum sensitivity.

The sensor brick have a installation holes-M3 ,which is used to adjust the direction and fasten conveniently.


Application : Robot or Smart Car etc.

Connecting Diagram :
