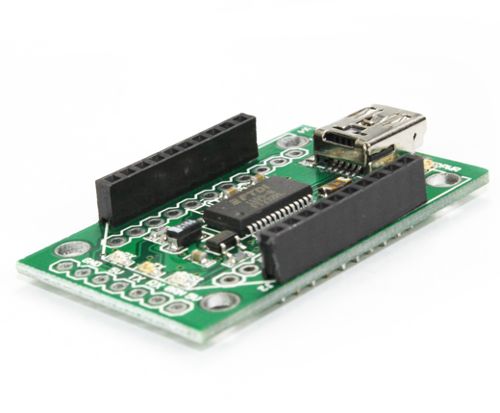

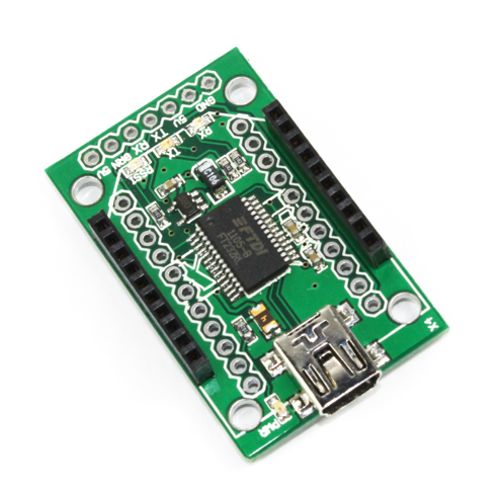

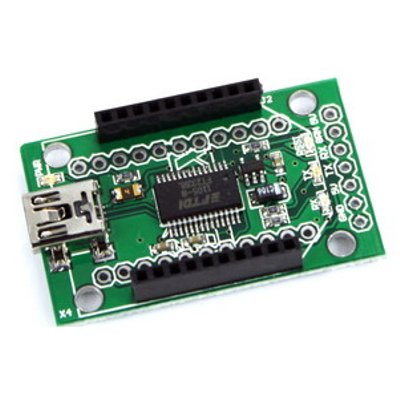

Arduino XBee USB Adapter V2.0

Each terminal module has buckled port with VCC, GND and Output, which has corresponding port on the sensing board, with a plain 2.54mm dual-female cable you may start playing already. Buckled brick cables are like cement for bricks, make the connections easier, secure and more professional looking.

You can do some simple design around it，it support“plug and play”。

Arduino XBee USB Adapter V2.0 is simple to use, USB to serial base unit for the XBee line. This unit works with all XBee modules including the Series 1 and Series 2.5, standard and Pro version. Plug the unit into the XBee Explorer, attach a mini USB cable, and you will have direct access to the serial and programming pins on the XBee unit.

Arduino XBee USB Adapter V2.0 converts a USB connection into 5 volt TX and RX that you can connect straight to the Arduino Mini or other microcontrollers, allowing them to talk to the computer. It is based on the FT232RL chip from FTDI (drivers are included with the Arduino software).
This modules can be connected directly With the PC via USB cable , convenient for XBee module.



Refer Documents:

1、Schematic

2、X-CTU Software

3、USB FTDI Drivers for Windows, Linux, Mac

下载pdf文档资料.pdf
