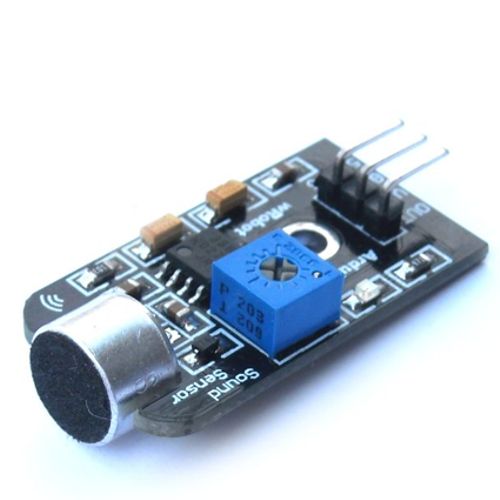

Specification :

1、Can detect the surrounding sound then output analog value.

2、Can set a sound value then output digital value.

3、Adjustable Sensitivity , Stable Performance.

4、5V Working Voltage , support both the output digital value and the output analog value.

5、Analog voltage signal output, signal amplitude is VCC / 2

6、Sensitivity, built-in amplifier circuit, gain can be adjusted

7、Get the intensity of the sound of the voltage signal through the AD transform

8、Port explanation : DO for digital output, AO for analog output.

9、Applicable to a variety of platforms including Arduino / AVR / ARM.

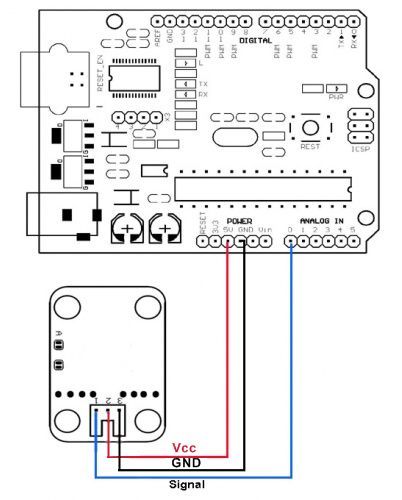

Connection Diagram

This sensor module come with 3 Pin Dual-female Jumper Wire length 300mm as below :



Click here to download schematic diagram and datasheet
