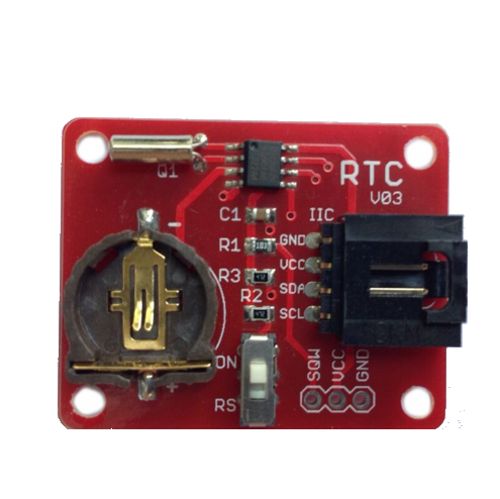

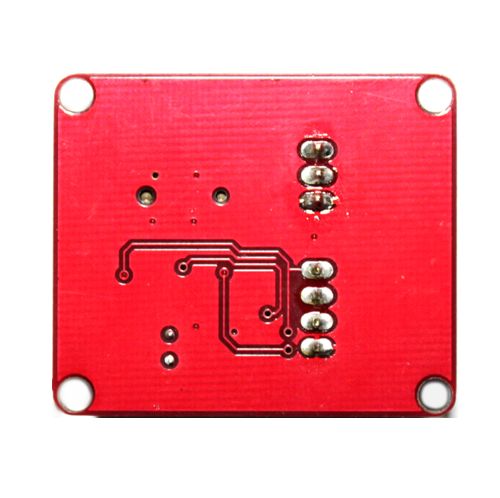

Arduino RTC DS1307 Shield

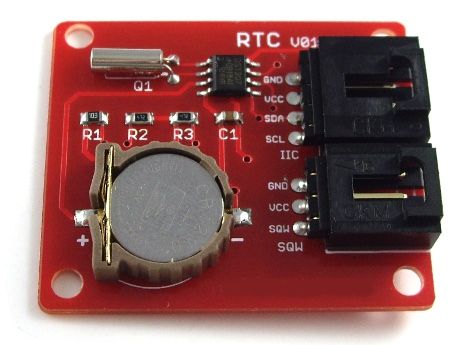

This V3 have the same useage as V1.0.
We design the real clock module to pin out the I2C interface of Ds1307 and programmable waveforms output interface SQW are connected, but usually we will only use the I2C interface to realize basic set the clock/read function. Note, this module must be installed on the battery can work normally. The battery is button batteries (type CR1220), the positive upward :
Note : this shield don't include the batteries
This module communicate with Arduino through the I2C interface.It will be better to use with Arduino-Sensor-Shield-V4.0 and the Arduino-I2C-COM-Cable.
This module can be used with Arduino Special Sensor Shield V4.0.
You can do some simple design about it,it support“plug and play".
In circuit connection, we can use Arduino sensor shield V4 board, but set the corresponding jumpers wires to IIC position :
Then connect with Arduino Special Sensor Shield V4.0.
Download the DS1307 Library 1 or Library 2
then uncompress DS1307 Library 1 or Library 2 into libraries of Arduino 0018 and restart ;
Testing Code :

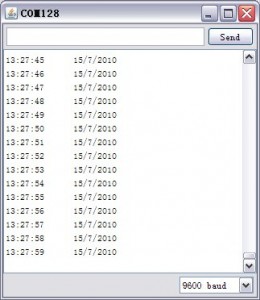

#include <WProgram.h> #include <Wire.h> #include <DS1307.h> // written by mattt on the Arduino forum and modified by D. Sjunnesson void setup() { Serial.begin(9600); RTC.stop(); RTC.set(DS1307_SEC,1); //set the seconds RTC.set(DS1307_MIN,23); //set the minutes RTC.set(DS1307_HR,12); //set the hours RTC.set(DS1307_DOW,4); //set the day of the week RTC.set(DS1307_DATE,15); //set the date RTC.set(DS1307_MTH,7); //set the month RTC.set(DS1307_YR,10); //set the year RTC.start(); } void loop() { Serial.print(RTC.get(DS1307_HR,true)); //read the hour and also update all the values( true) Serial.print(":"); Serial.print(RTC.get(DS1307_MIN,false));//read minutes without update (false) Serial.print(":"); Serial.print(RTC.get(DS1307_SEC,false));//read seconds Serial.print(" "); // some space for a more happy life Serial.print(RTC.get(DS1307_DATE,false));//read date Serial.print("/"); Serial.print(RTC.get(DS1307_MTH,false));//read month Serial.print("/"); Serial.print(RTC.get(DS1307_YR,false)); //read year Serial.println(); delay(1000); } The Result : Download the code into Arduino and run, you can watch the result through serial window :
Click to download the test code
Click to download the schematic diagram
