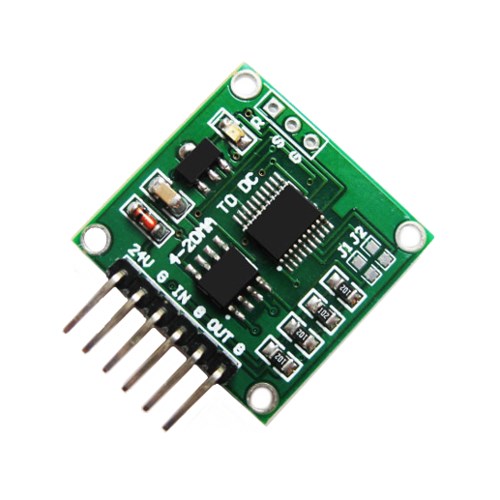

Current to Voltage Converter Module
.jpg)
This module help user to convert current into voltage and can be easily integrated to kinds of MCUs because of its tiny size.
Parameter
1、Working Voltage: 9V~24V
2、Input Current: (4.00mA~20.00mA / 0.00mA～20.00mA)
3、Output Voltage: (0.00V～5.00V / 0.00V～10.00V)
4、Control Mode: (4.00mA～20.00mA) converted to the (0.00V～5.00V / 0.00V～10.00V)
5、Input Mode: J1 of this module: Open Circuit (input 4.00mA～20.00mA);
Short Circuit (input 0.00mA～20.00mA);
Open circuit by default
Short Circuit (input 0.00mA～20.00mA);
Open circuit by default
6、Output Mode: J2 of this module: Open Circuit (output 0.00V～5.00V);
Short Circuit (output 0.00V～10.00V);
Open circuit by default
Short Circuit (output 0.00V～10.00V);
Open circuit by default
7、Application: convert current into voltage signal; remote data acquisition and control equipment
8、Size: 26mm(L) * 23mm(W) * 10mm(H)

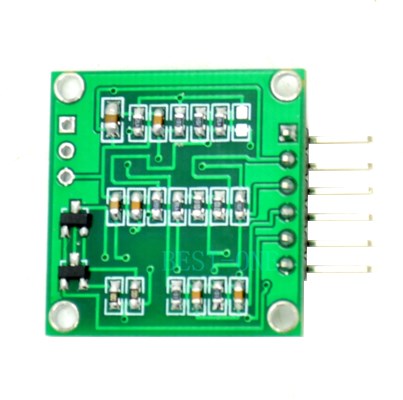

.jpg)
Pin Definition
24V: Vcc (9V~24V)
G: GND
IN: Signal Input (4.00MA～20.00MA / 0.00MA～20.00MA)
G: GND
OUT: Signal Output (0.00V～5.00V / 0.00V～10.00V)
G: GND
(Notice: when output 0.00V ~ 10.00V, the Vcc recommend 15V).
